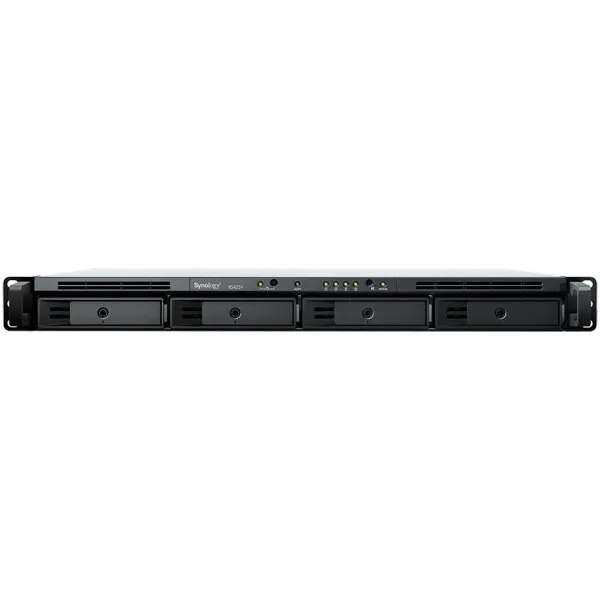

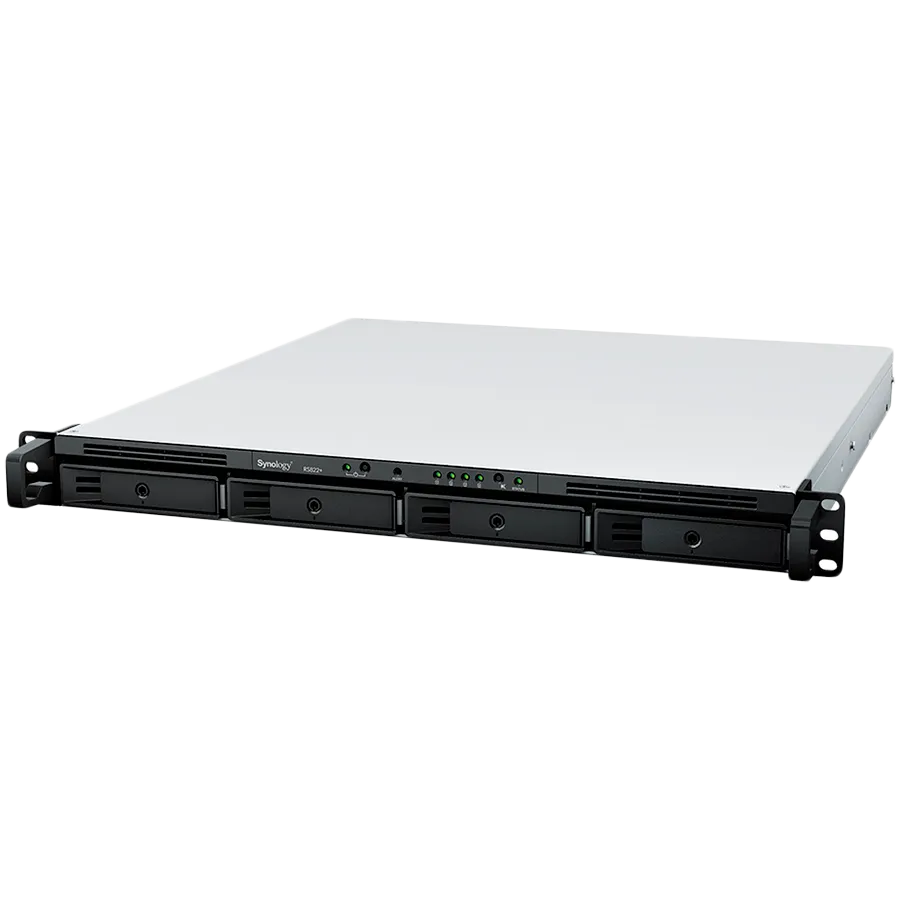

RackStation Synology RS822+ 1U/4bay Slika 1
RackStation Synology RS822+ 1U/4bay Slika 1

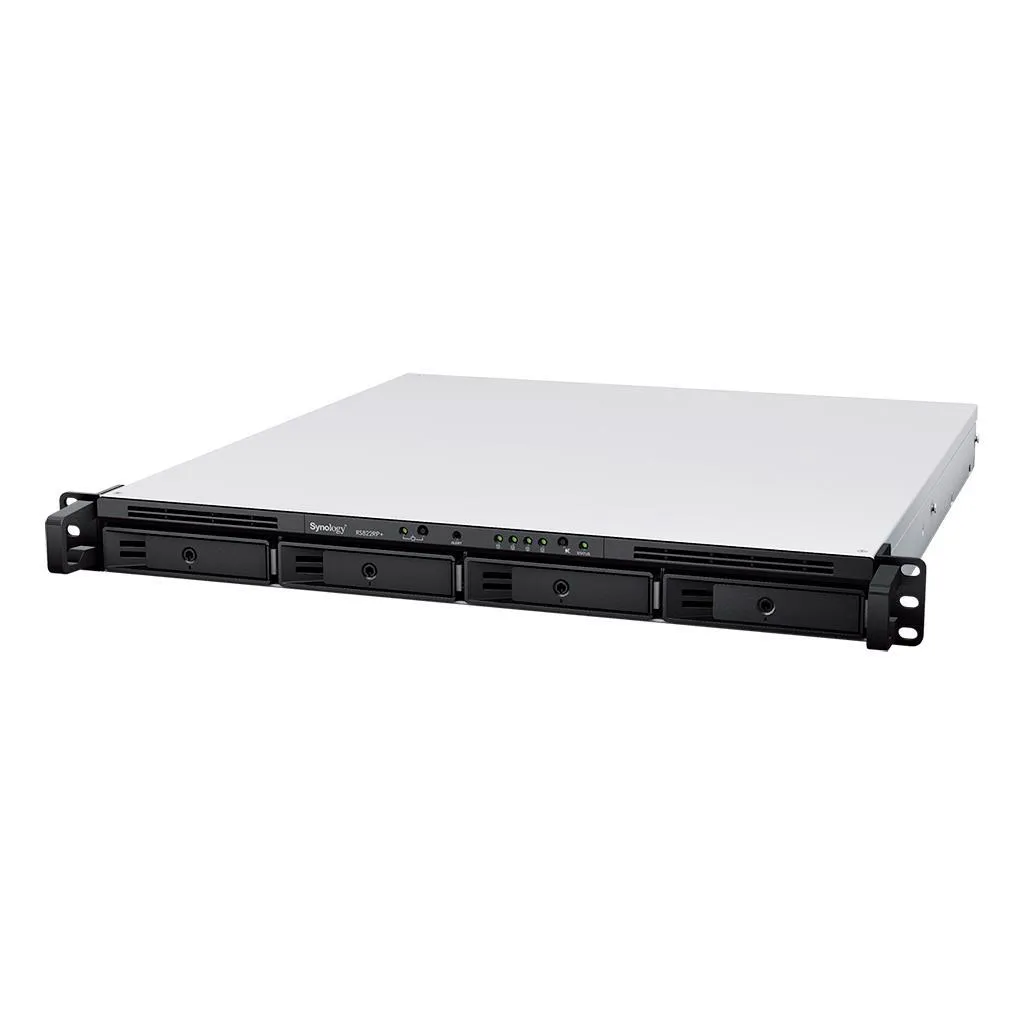

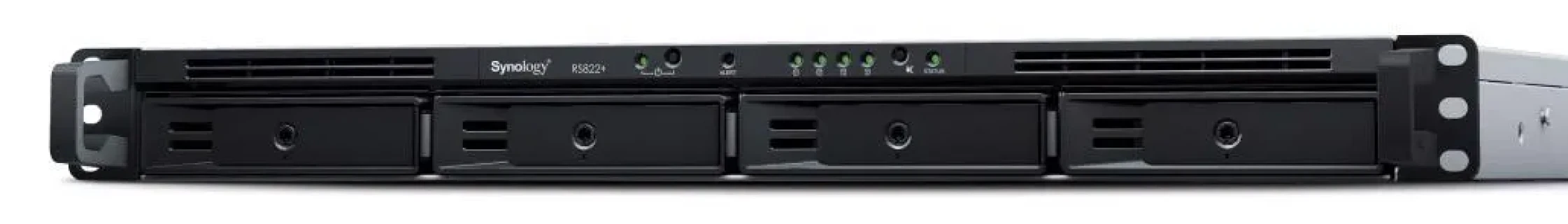

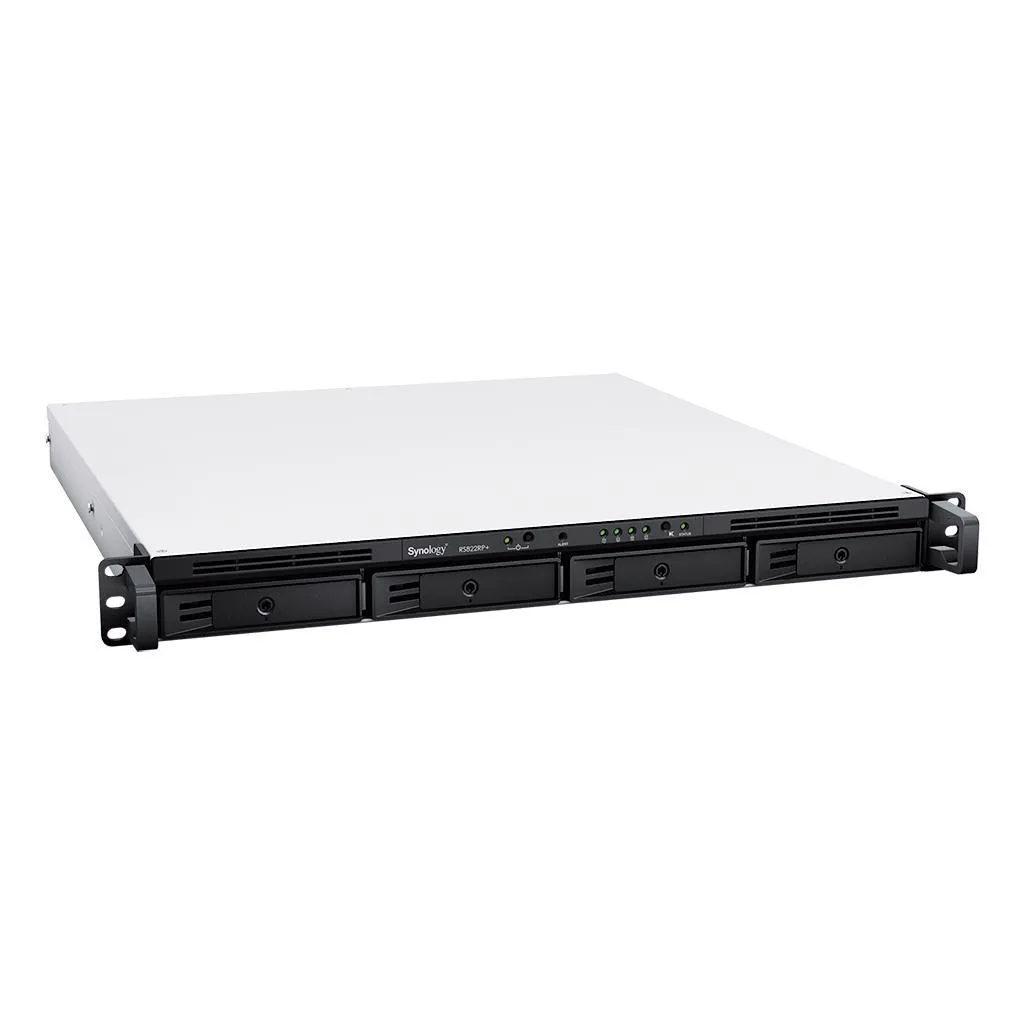

RackStation Synology RS822+ 1U/4bay

123.820 RSD
*sve prikazane cene su sa uračunatim pdv-om
EAN: 4711174724741Brend: SynologySKU: 2490074
Na stanju.
Dostava kroz 1-3 radna dana.
Uslovi kupovine i dostaveOpcije plaćanja

Opis proizvoda

Hardware Specs
Hardware Specifications
RS822RP+
RS822+
CPU CPU Model AMD Ryzen V1500B AMD Ryzen V1500B
CPU Quantity 1 1
CPU Core 4 4
CPU Architecture 64-bit 64-bit
CPU Frequency 2.2 GHz 2.2 GHz
Hardware Encryption Engine
Memory System Memory 2 GB DDR4 ECC SODIMM 2 GB DDR4 ECC SODIMM
Memory Module Pre-installed 2 GB (2 GB x 1) 2 GB (2 GB x 1)
Total Memory Slots 2 2
Maximum Memory Capacity 32 GB (16 GB x 2) 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage Drive Bays 4 4
Maximum Drive Bays with Expansion Unit 8 (RX418 x 1) 8 (RX418 x 1)
Drive Type (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive*
Notes The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)

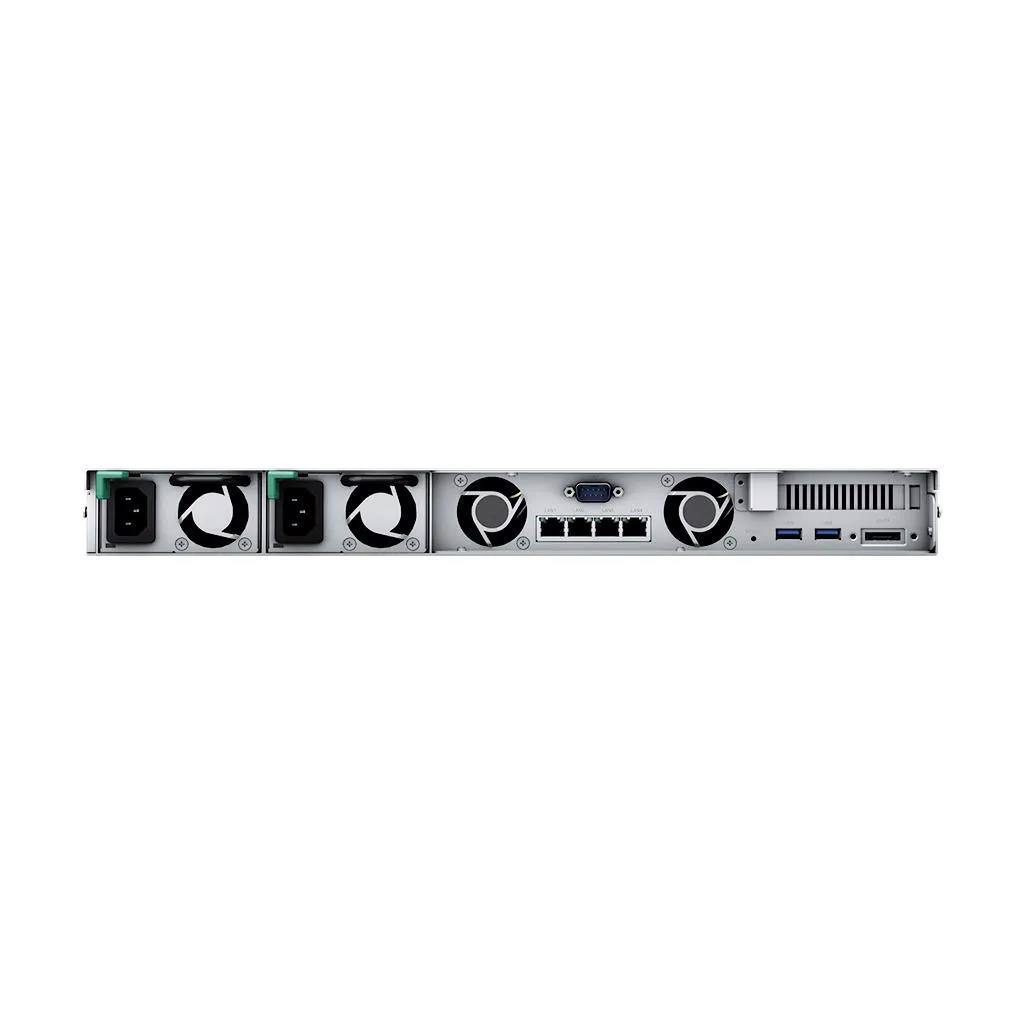

External Ports RJ-45 1GbE LAN Port 4 4
USB 3.2 Gen 1 Port* 2 2
Expansion Port 1 1
Expansion Port Type eSATA eSATA
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe PCIe Expansion 1 x Gen3 x8 slot (x4 link) 1 x Gen3 x8 slot (x4 link)
Appearance Form Factor (RU) 1U 1U
Size (Height x Width x Depth) 44 mm x 480 mm x 518.6 mm 44 mm x 480 mm x 492.6 mm
Weight 8.0 kg 6.4 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
Notes The rail kit is sold separately
Others System Fan 40 mm x 40 mm x 2 pcs 40 mm x 40 mm x 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 38.8 dB(A) 27.4 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 150 watts 150 watts
Redundant Power Supply   -
AC Input Power Voltage 100 V to 240 V AC 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase
Power Consumption 47.69 watts (Access)
16.7 watts (HDD Hibernation)		 47.69 watts (Access)
16.7 watts (HDD Hibernation)
British Thermal Unit 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)		 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty   3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment   RoHS Compliant RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1
Optional Accessories
Notes
  • Certain items may not be available in your location. Please contact your local distributors for more information.
  • Upgrade to DSM 7.2-64551 or later before installing the M2D18.
  • All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
Software Specs
DSM Specifications
RS822RP+
RS822+
Storage Management Maximum Single Volume Size 108 TB 108 TB
Maximum Internal Volume Number 64 64
SSD Read/Write Cache (Determining cache size)
SSD TRIM
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
