Specifications
Electrical Data
Wattage: 480W
Current

Maximum Power Current(Imp): 13.57;
Short Circuit Current(Isc): 14.31±3%;

Voltage
-Maximum Power Voltage(Vmp): 35.37;
-Open Circuit Voltage(Voc): 42.70±3%;

Body Details
Material:
-Front Glass: 3.2mm AR Coating Tempered Glass;
-Frame: Anodized Aluminium Alloy (Silver)

Capabilities
Working conditions: -40°C to +85°C
IP Rating: IP68

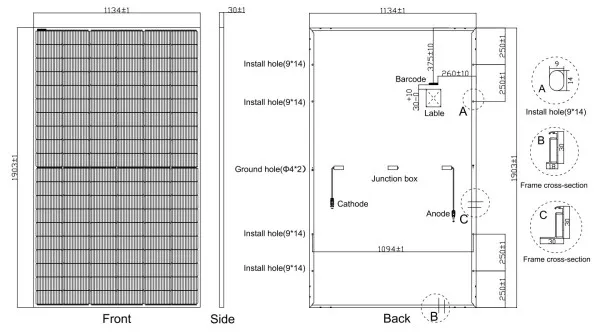

Dimensions
Size: 1903 x 1134 x 30 mm
Product Data
Order code
1228537

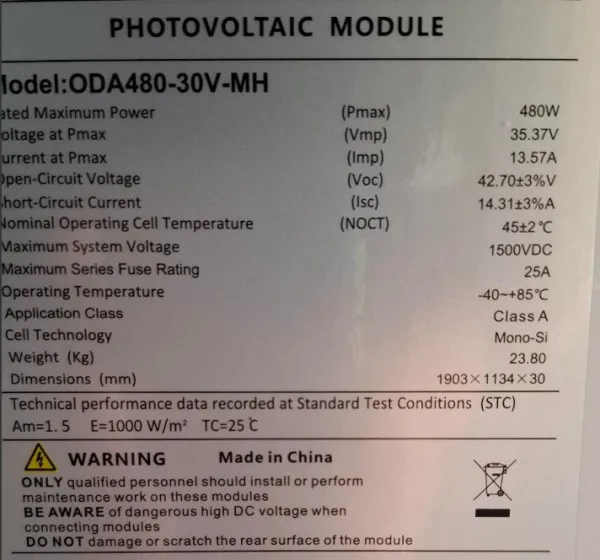

Product code: ODA480-30V-MH
Item Weight: 860 kg
Brand: OSDA
TIER 1: Yes
Warranty:
12 years product material / 25 years linear power output
Additional information:
-Cell Type: 182*91 N-Type Mono;
-No. of cells 120 (12 x 10)
