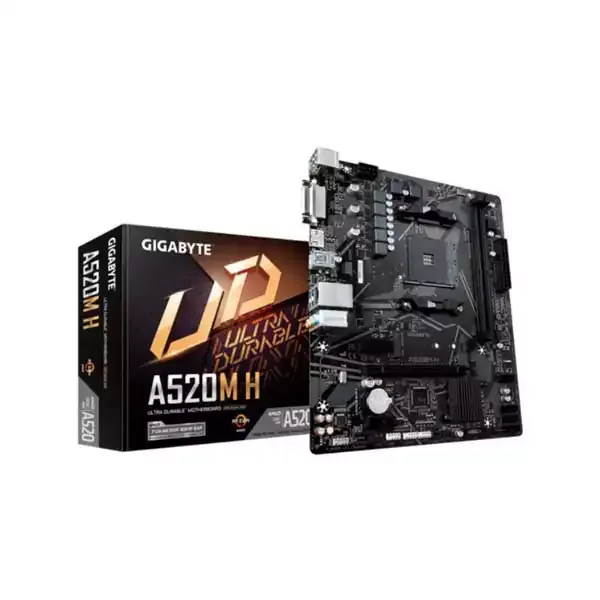

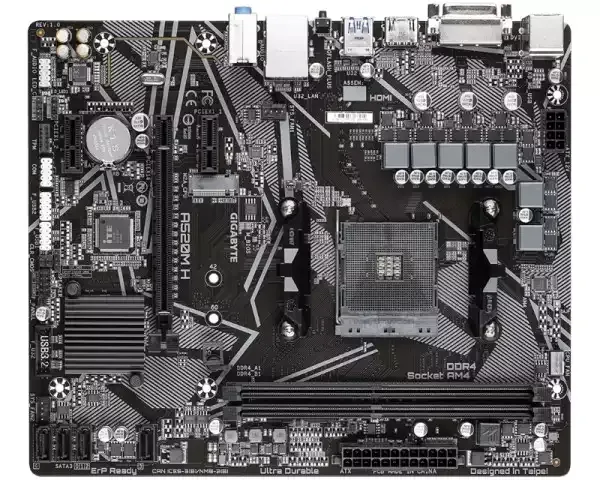

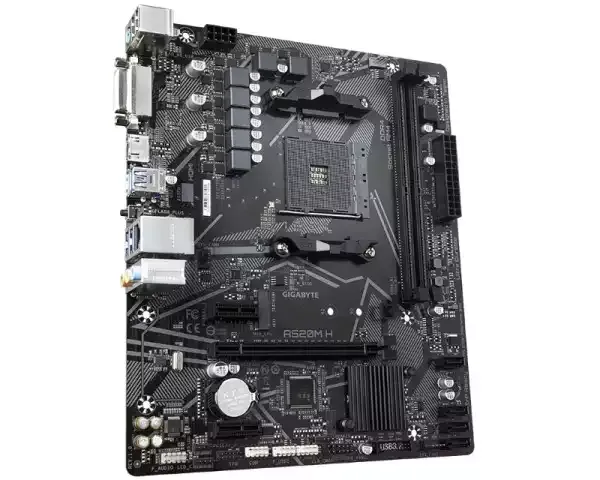

Matična ploča AM4 Gigabyte A520M H RGB DVI/HDMI/M.2
7.250 RSD
*sve prikazane cene su sa uračunatim pdv-omEAN: 4719331879822Brend: GIGABYTESKU: 2518352
Na stanju.
Dostava kroz 1-3 radna dana.
Dostava kroz 1-3 radna dana.
Opis proizvoda
| Model | Matična ploča AM4 Gigabyte A520M H DVI/HDMI/M.2 |
| Robna grupa | AMD matične ploče |
| Uvoznik | |
| Zemlja porekla | |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Čipset | AMD® A520 |
| Format ploče | Micro ATX |
| Podržani procesori | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors |
| Podržana memorija | DDR4 |
| Memorija | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Slotovi za proširenje | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 |
| Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Mrežna karta | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
| Zvučna karta | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| USB | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

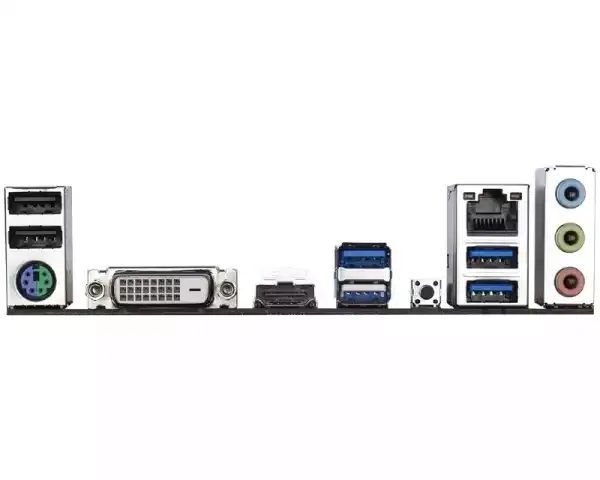

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks |
| Interni konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |
| Bios | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji proizvoda.
